Place of Origin : US
Brand Name : Original
Model Number : IRG4PC40UDPBF
Supply Ability : 859000PCS/Day
Packaging Details : Box/Reel/Tube
MOQ : 10
Price : $1.50 - $2.65 / Piece
Delivery Time : 1-7 days
Payment Terms : T/T, Western Union, Paypal,Alibaba trade order
Supplier Type : Original manufacturer, Agency, Retailer
Media Available : datasheet
Package Type : Throught Hole
Brand : IGBT 600V 40A 160W TO247AC
Current - Collector (Ic) (Max) : 40A
Voltage - Collector Emitter Breakdown (Max) : 600V
Power - Max : 160W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 20A
Type : Field-Effect Transistor
Package : TO-247
Shipping by : DHL\UPS\Fedex\EMS\HK Post
Packing : Tube&Reel&Tray
Port : HK/SHENZHEN
Product Detail
Packaging | Bulk | |
---|---|---|
Part Status | Last Time Buy | |
Voltage - Collector Emitter Breakdown (Max) | 600V | |
Current - Collector (Ic) (Max) | 40A | |
Current - Collector Pulsed (Icm) | 160A | |
Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 20A | |
Power - Max | 160W | |
Switching Energy | 710µJ (on), 350µJ (off) | |
Input Type | Standard | |
Gate Charge | 100nC | |
Td (on/off) @ 25°C | 54ns/110ns | |
Test Condition | 480V, 20A, 10Ohm, 15V | |
Reverse Recovery Time (trr) | 42ns | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Through Hole | |
Package / Case | TO-247-3 |
1. Stock,Order goods or Manufacturing welcome.
2. Sample order.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products.
5. When you got the goods, test them, and give me a feedback.If you have any problem
![]() |

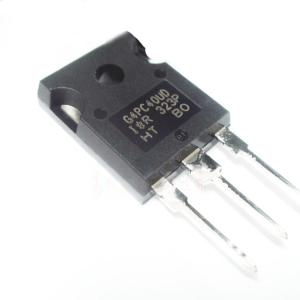

G4PC40UD IRG4PC40UDPBF IGBT MOSFET Transistor 600V 40A 160W Images |
